T-Series Touchscreens
Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality—anywhere users need customized system management. Control screens can include any of the parameters needed, display customer branding, and provide easy-to-use buttons, sliders, and navigation for end-users.
Series Features
- Available in 10″, a new 7”, and 5″ hi-res touchscreens for Symetrix Composer® DSP systems
- Easy-to-program SymVue control interface
- Up to 128 touchscreens per system
- Batch configuration streamlines deployment
- Fits US and Euro double-gang wall and junction boxes
- PoE/PoE+ powered

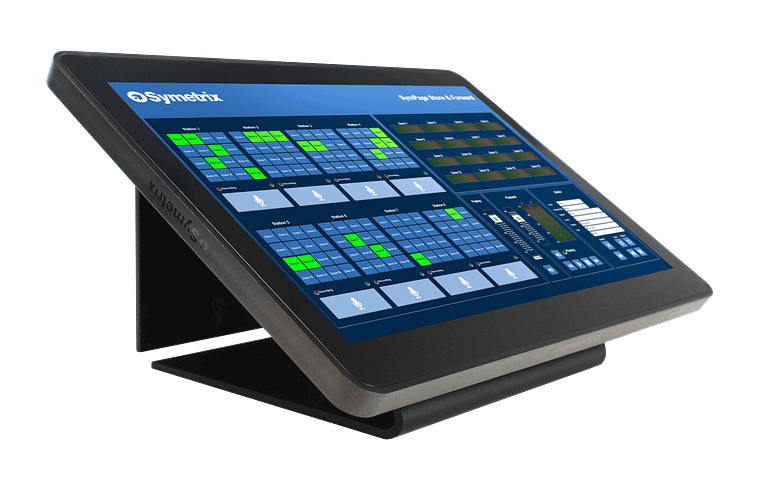

- Optional tabletop stand accessory
- Five-year warranty
Customized User Interface
The T-series leverages the award-winning SymVue graphic user interface authoring technology, allowing control screens to be created, tested, and simulated before being deployed. Multiple pages, custom controls, backgrounds, logos and more can be created quickly and easily.
Multi-Lingual Control Screens
Control Screens can be designed with any language and font, empowering designers to create perfect designs for their target users in their native language.
License Free
A variety of screens can be quickly designed using Symetrix Composer and SymVue software, then exported to a system. There are no additional licensing fees for deploying multiple control screens.
Compact and Easy to Power
Symetrix touchscreens fit in any US or Euro double-gang receptacle and are designed to fit with any decor. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.
User control in every part of a building. Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality — anywhere users need to control audio sources and levels.
SymVue interface. Symetrix touchscreens leverage the power of Symetrix’s award-winning SymVue GUI authoring technology, allowing control screens to be created, tested and simulated offline in Composer before being deployed to the touchscreens. Multiple pages with custom controls, unique backgrounds, corporate logos and more can be created quickly and easily with SymVue.
Custom multi-lingual GUIs can be quickly designed using Symetrix Composer and SymVue software, then exported to as many as 80 touchscreens on a system.
Easy batch configuration of multiple touchscreens. Directly managed by Symetrix Composer, touchscreens can simultaneously export/update to named groups of up to 80 touchscreens with programmers’ choice of four different configurations for each export.
Compact and unobtrusive. Symetrix touchscreens fit in any U.S. or EU 2-gang receptacle.
Ethernet-powered. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.
Note: T-10 Glass requires Composer 8.3 or later for full functionality.
| SPECIFICATIONS | |
|---|---|
| Form Factor | Double-gang US or Euro wall mount |
| DISPLAY | |
| – Type | Capacitive touch full color TFT LCD |
| – Viewable Area | 8.54 in (216.8 mm) x 5.33 in (135.5 mm), 10.1 in (256.54 mm) diagonal |
| – Resolution | 1920 x 1200 pixels |
| – Aspect Ratio | 16:10 |
| – Brightness | 850 nits |
| – Contrast Ratio | 900:1 |
| – Color | 16.7M |
| – Orientation | Landscape (horizontal) or portrait (vertical) |
| – Viewing Angle | ±85° horizontal, ±85° vertical |
| – Multitouch | 10 fingers |
| Compatibility | Symetrix Composer®-managed products |
| Ethernet Cable | Standard CAT5e or CAT6. Maximum device to device length: 100 meters |
| Maximum Devices Per System | 128 units per Site File |
| Compliance | Safety: EMC International & EMC US/CANADA. Emissions: CE, UKCA, EAC, FCC Part 15. RoHS (Health/Environmental) |
| MECHANICAL DATA | |
| Dimensions | |
| – WHD | 9.70 in x 7.07 in x 2.33 in (246.46 mm x 179.50 mm x 59.30 mm) |
| – T-10 Glass Shipping Weight | 4 lbs |
| – T-10 Glass Weight | 2.3 lbs |
| – T-10 Mounted with Bracket Weight | 2.5 lbs |
| Space Required | Double-gang US or Euro wall box. Depth does not include connector allowance. Allow at least 3-inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Power | Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max |
| Environmental | Ambient Operating Temperature: 0° – 40° C (32° – 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
| Box Contents | T-10 Glass touchscreen. Universal flush mount bracket. Two zinc-plated steel M3.5×0.6x25mm Phillips head machine screws. Four zinc-plated steel 1.25” 6-32 Phillips head machine screws. Quick Start Guide |
| Optional Accessories | Tabletop Stand |
T- 7 Glass
T-7 Glass CAD
T-7 Glass Data Sheet
T-7 Glass Quick Start Guide
Installed Sound DSP
Accessories
Customized User Interface
Frequently Asked Questions
T-Series Touchscreen Controllers
- Why is my touchcreen showing a timeout error “Not yet received subscription response”?
This usually means the control subscriptions between the touchscreen and the site file/DSP programming has failed or hasn’t been updated. In most cases re-exporting the control screen configuration with “Go online with Composer site file” checked will also update the DSP archive and correct this issue. This error can also be due to IP conflicts on the network.
- How do I calibrate my touchscreen?
- Composer 8.3.3.18 or later must be installed and any touchscreens in the design must be loaded with firmware version 8.3.3.18 or later.
- In Composer, with the touchscreen(s) in question located, go to Tools > Remote Terminal and then Options > Debug Mode.
- Confirm that the IP address of the touchscreen in question matches in the upper left of Remote Terminal.
- Send “tcal” (no quotes) to the touchscreen. Remote Terminal should return “Touchscreen calibration will run on next boot, succeeded”.
- Send “R!” to reboot the touchscreen and the calibration process will begin once the device has rebooted. Follow the prompt on the T-5 to complete this process.
- Why is my touch screen only displaying an IP address?
This means the touchscreen doesn't have a Control Screen exported to it. Usually this will be the case after a factory reset or direct from factory.
- Why is my touch screen showing a timeout error “Not yet received subscription response”?
This usually means the control subscriptions between the touchscreen and the site file/DSP programming has failed or hasn't been updated. In most cases re-exporting the control screen configuration with "Go online with Composer site file" checked will update the DSP archive and correct this issue.
- What stand is supported for my T-Series Touchscreen Controller?
The T-7 Glass and T-10 Glass series of touchscreen controllers uses the same stand. The T-5 Glass touchscreen controller has a dedicated stand.
- How do I configure a T-Series Touchscreen Controller?
All the configuration can be accomplished using the Symetrix Composer software.
- What wall mounting form factors are supported by the T-Series?
The T-Series can mount into a standard double-gang US or Euro wall box.
- How do I power the T-Series Touchscreen Controller?
The T-5 Glass requires PoE.
The T-7 Glass and T-10 Glass require PoE+
- What is the brightness of the T-7 Glass?
500 nits
- What is the resolution of the T-Series screens?
T-5 Glass: 800x480
T-7 Glass: 1280×800
T-10 Glass: 1920x1200
- Can the T-Series be used in landscape or portrait orientations?
The T-5 Glass and T-7 Glass can only be used in landscape orientations.
The T-10 Glass can be used in either landscape or portrait orientations. This is configured in Composer.
